Western Red Cedar Grades: Heartwood, Clear, and More

Most homeowners shopping for a cedar deck never hear the word “grade” until we bring it up during the site walk. That’s a problem because cedar grade affects how long your deck lasts, how it looks at year five, and how much you’re paying per square foot of surface. The same Western Red Cedar species can perform very differently depending on which grade you build with, and most off-the-shelf cedar at big-box stores isn’t the grade you’d want for a deck you’re planning to live with for 20+ years.

This guide breaks down the actual cedar grades, why grade matters specifically in the Texas climate, and what we’d recommend by application across our build work. Robert and the build crew walk through grade selection with every homeowner of a cedar deck. For the broader question of whether cedar or composite suits your home in the first place, our material comparison covers that decision before grade enters the conversation.

Why Grade Matters More Than Most Homeowners Realize

Western Red Cedar is one species, but the boards sold under that name vary widely in quality. The variance comes from three factors: heartwood-vs-sapwood content (heartwood is the dense, rot-resistant inner wood; sapwood is the lighter, less durable outer wood), knot count and size (clear vertical-grain has none; construction common has many), and milling consistency (architectural-grade boards are dimensionally consistent; construction-grade often varies).

In the Texas climate, these differences compound. Heartwood resists rot and UV degradation 3 to 4 times better than sapwood. Knots create surface irregularities where water collects, and decay starts. Inconsistent milling causes fastener problems and cupping during humidity swings. Grade selection isn’t an aesthetic preference. It directly affects how long the deck will perform in Austin’s specific climate.

We source cedar through specialty lumber suppliers for our cedar deck work specifically because big-box availability tends to skew toward lower grades that don’t perform as well over the long term in Texas.

The Cedar Grade Hierarchy, Top to Bottom

Clear Vertical-Grain Heartwood (CVG) is the highest grade available. The boards are 100 percent heartwood, knot-free, with vertical grain that’s dimensionally stable through changes in humidity. CVG cedar handles Texas UV and humidity exceptionally well and runs 25 to 30 years with proper sealing. It’s also the most expensive cedar available and typically requires a special order from architectural-grade suppliers.

Architect Clear (A & Better) is the next tier. Boards are mostly heartwood, with minimal small, tight knots and consistent grain. Performance approaches CVG without the price premium. This is what we’d typically recommend for visible deck surfaces on premium builds. Most of the cedar that lasted 25+ years in shaded Central Austin neighborhoods was originally Architect Clear or better.

Knotty Cedar (B-Grade or #1 Common) carries visible knots that are tight and intact rather than loose. Heartwood content is moderate. The aesthetic reads more rustic than the clear grades, which suits craftsman, cabin, and Hill Country architectural styles well. Performance runs 15 to 20 years with sealing, which is solid but noticeably less than the clear grades.

Construction Common (#2 Common) is the most widely available cedar grade and what big-box stores typically stock. It has loose knots, sapwood content (sometimes significant), and milling variance. Performance is the shortest of the grades, typically 10 to 15 years, even with sealing. We use this grade for hidden structural members, where cosmetic and rot-resistance issues are less visible, but not for surface boards in quality builds.

Utility Grade is mill-run cedar with the lowest grade designation. Heavy knots, significant sapwood, and dimensional variance. Not suitable for deck surfaces, sometimes acceptable for fencing where rot resistance matters less.

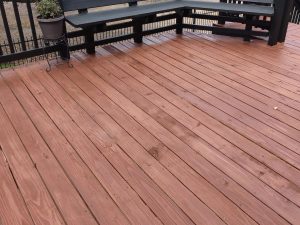

Heartwood vs Sapwood: Why It Matters

The heartwood-versus-sapwood distinction is the single biggest determinant of cedar performance in Texas. Heartwood is the dense, dark-colored inner wood of the tree. It contains natural preservatives (thujaplicins) that resist rot, insects, and fungal decay. Sapwood is the lighter outer wood that’s still actively transporting nutrients when the tree is cut. It lacks those preservatives and decays significantly faster than heartwood.

In Austin’s climate, the difference shows up in lifespan. Heartwood cedar in full sun, properly sealed, runs the full 20- to 25-year range. Sapwood cedar under the same conditions runs for 8 to 12 years, even with identical sealing. Most premature cedar deck failures we see during refurbishment work trace back to high sapwood content in the original build rather than poor maintenance. Even excellent ongoing care can’t compensate for low-heartwood cedar.

The other heartwood-vs-sapwood difference is color stability. Heartwood weathers gracefully to a uniform silver-gray. Sapwood-heavy boards weather inconsistently, with sapwood areas darkening and showing surface degradation, while heartwood areas remain relatively stable. The blotchy weathering pattern is the visual signature of low-heartwood cedar at year five.

Knot Considerations

Knots are sealed sections of branch growth within the board. Tight knots (still firmly attached to the surrounding wood) are aesthetic features that don’t significantly affect performance. Loose knots (separated from the surrounding wood with visible gaps) are a performance problem. The lifespan of a cedar deck hinges partly on the knot quality of the original boards. They create water-collection points, fail dimensionally during humidity swings, and often fall out within a few years of installation. Even scheduled sealing work can’t fully address these defects.

Grade designation accounts for knot type indirectly. Clear grades have no visible knots. Architect Clear allows only minimal, tight knots. Knotty cedar has visible, tight knots throughout. Construction Common has both tight and loose knots, and the loose knots are the long-term problem.

We inspect every board during installation and reject boards with loose knots, splits exceeding 1/4 inch, or visible defects, regardless of grade designation. That’s separate from the grade purchase decision but worth knowing: even within a grade, individual boards vary, and quality installers cull the bad ones.

How We’d Recommend by Application

For premium visible surfaces on long-term family homes: Architect Clear or higher. The 20+ year lifespan justifies the upfront premium, and the aesthetic stays clean for years. This is our default recommendation for Central Austin custom builds where the deck investment is significant, and the homeowner plans to stay.

For standard visible deck surfaces on mid-range builds: Knotty Cedar (B-grade or #1 Common) if the rustic aesthetic suits the home. Performance is solid, and the visible knots can be a design feature in craftsman or Hill Country-style homes rather than a defect.

For hidden structural members (joists, blocking, beam supports): Construction-grade cedar is acceptable, or we often use pressure-treated pine for structural reliability at a lower cost. The hidden location means cosmetic grade doesn’t matter. Structural members aren’t exposed to direct UV.

For aged deck replacement projects where we’re rebuilding on existing footings, matching the original cedar grade matters less than choosing the right grade for the new build’s expected lifespan. We’d often upgrade grade selection on rebuilds if the original were Construction Common.

For fencing or non-deck applications, Knotty Cedar or Utility Grade works fine. The performance gap matters less when the wood isn’t carrying foot traffic and structural loads.

How to Verify the Grade You’re Getting

Reputable suppliers will state the grade explicitly on the invoice. Architect Clear, Clear Vertical-Grain, B-Grade, #1 Common, #2 Common, and Utility Grade are the standard designations. If a supplier or contractor isn’t using grade terminology at all, that’s a flag worth questioning. We document grade selection in every cedar deck contract we write, so the homeowner has a record of what they purchased.

Visually, you can identify higher grades by checking heartwood content (dark, uniform color across the full board face), knot count (fewer or none on Architect Clear and higher grades), and grain pattern (vertical grain on premium boards versus flat grain on lower grades). Schedule a cedar consultation, and we’ll bring grade samples to the site walk, so the visual differences are obvious in person rather than abstract on a spec sheet.
